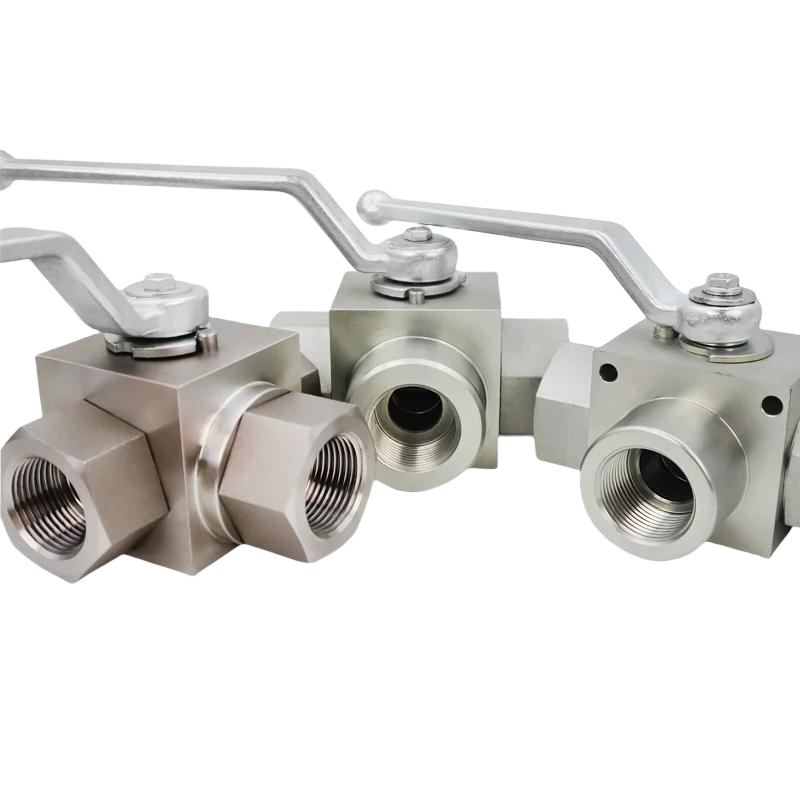

High Pressure 3 Way Ball Valve Manufacturers

In modern industrial hydraulic systems, the High Pressure 3 Way Ball Valve, as a core component of fluid control, directly impacts the operating efficiency and safety of the entire system. Yancheng Yanye Hydraulic Parts Co., Ltd., with its profound industry experience and technological innovation, has elevated the research and manufacturing of High Pressure 3 Way Ball Valves to a new level.

I. Core Overview of High Pressure 3 Way Ball Valves
A High Pressure 3 Way Ball Valve is a special type of directional and distribution valve, primarily used to switch, combine, or divert fluid flow under high-pressure conditions. Unlike traditional two-way valves, it has three channels within a single valve body, and the opening and closing of different flow paths are achieved through the rotation of the ball.

Yancheng Yanye Hydraulic Parts Co., Ltd. fully considers fluid mechanics characteristics in the design of these valves, ensuring that the valve maintains extremely low operating torque and tight sealing even under high-pressure environments.

II. Key Technical Features and Advantages
1. Excellent Flow Path Configuration (L-type and T-type)
High Pressure 3 Way Ball Valves are usually divided into two basic forms: L-type and T-type flow paths:

L-type flow path: Primarily used for flow direction switching. It can connect two perpendicular channels, allowing the pressure medium to switch between different branches by rotating the ball.

T-type flow path: More versatile, capable of achieving flow division, flow combination, or connecting all three channels.

2. Reinforced Sealing Structure
In high-pressure hydraulic systems, seal failure is the biggest hidden danger. Yanli Hydraulic adopts an advanced compensatory sealing design. Whether it's a soft seal or a hard seal structure, it can automatically compensate for wear under significant pressure fluctuations, ensuring long-term zero leakage performance.

3. Materials and Surface Treatment
For demanding industrial environments, the valve body is mostly forged from high-strength alloy steel or stainless steel. Through precision machining and surface heat treatment, the ball has extremely high roundness and surface hardness, effectively resisting erosion and wear from the medium.

III. Application Logic of High Pressure 3 Way Ball Valves
In complex hydraulic circuits, the High Pressure 3 Way Ball Valve plays the role of a "dispatcher."

Pressure Switching: In dual-pump systems or dual-pressure source systems, the pressure source can be quickly switched through the three-way ball valve. Circuit Bypass: When a part of the system requires maintenance or isolation, the three-way valve can quickly divert the fluid to a bypass circuit.

Actuator Reversing: Simplifies piping configuration, using a single three-way valve to replace a combination of multiple two-way valves, reducing system complexity and potential leak points.

IV. Technological Integration of Yancheng Yanye Hydraulic Parts Co., Ltd.
Yancheng Yanye Hydraulic Parts Co., Ltd. not only focuses on the quality of individual valves but also emphasizes the synergy between the valves and the overall hydraulic system.

Precision Forging Process: The company adopts high-standard die forging technology to ensure a dense internal structure of the valve body and eliminate casting defects.

Customized Solutions: For different customers' specific working conditions, such as ultra-high pressure, corrosive media, or extreme temperatures, the company provides targeted material modification and sealing configurations.

Global Perspective: Combining advanced domestic and international standards, Yanli Hydraulic's products demonstrate strong compatibility in interface specifications, pressure ratings, and installation dimensions.

V. Overview of Technical Parameters

VI. Frequently Asked Questions (FAQ)

Q1: Why is the flow path type (L-type or T-type) so important when selecting a three-way ball valve?
A: The flow path type determines the functional logic of the valve. L-type valves can only switch the flow direction, while T-type valves can achieve both merging and splitting of the flow. Choosing the wrong type will prevent you from achieving the desired circuit control effect and may even lead to system pressure buildup.

Q2: How to determine if a High Pressure 3 Way Ball Valve needs maintenance?
A: Observe three main aspects: firstly, whether the operating torque of the handle is abnormally increased; secondly, whether there is slight leakage at the exhaust port or joints; and thirdly, whether there is internal leakage at the non-flow port when switching states. Yancheng Yanye Hydraulic recommends regular inspection of moving parts.

Q3: Will operating a High Pressure 3 Way Ball Valve under high pressure be very difficult?
A: This depends on the ball design of the valve. Yancheng Yanye Hydraulic Parts Co., Ltd.'s products optimize the contact surface between the ball and the sealing ring and use low-friction sealing materials, allowing for relatively easy operation even under full pressure.

Q4: How to choose between metal hard seals and soft seals?
A: Soft seals (such as POM) have excellent sealing performance at room temperature and in general hydraulic oil. However, if the medium contains impurities or particles, or if the operating temperature exceeds the polymer's tolerance range, a hardened metal hard seal structure must be selected.

Q5: Do Yanye Hydraulic's products have directional requirements during installation?
A: High Pressure 3 Way Ball Valves usually have clear inlet and outlet markings. Due to the special nature of the internal sealing structure, it is recommended to install strictly according to the arrow direction on the valve body to ensure sealing effectiveness and valve lifespan.
