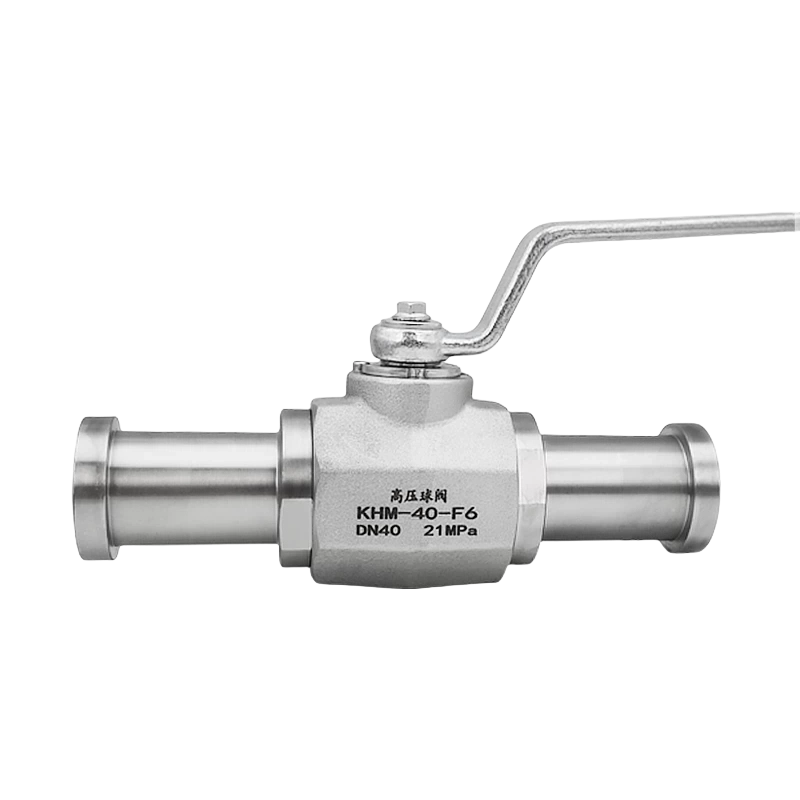

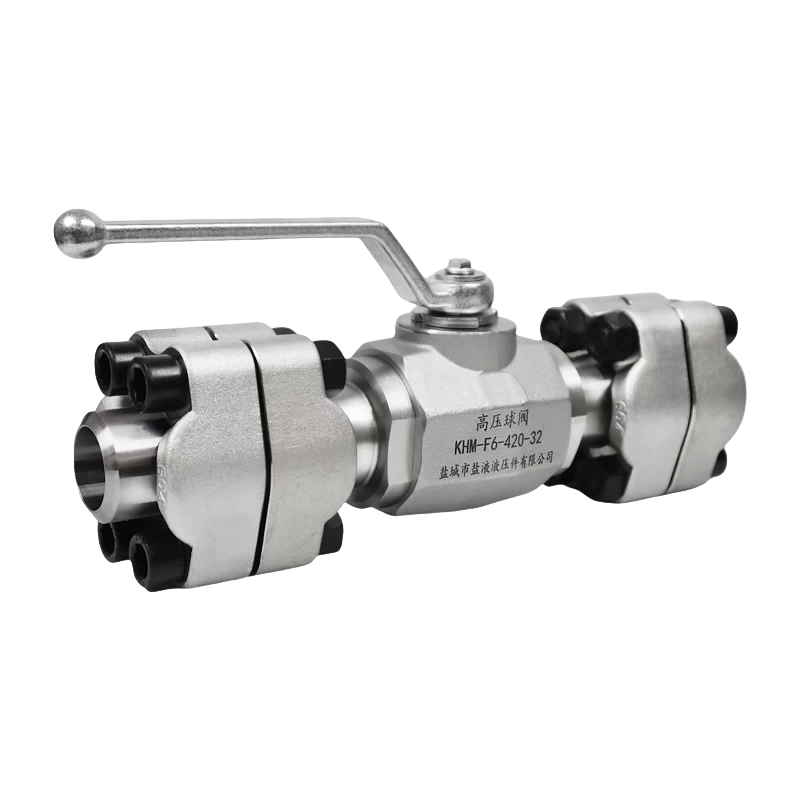

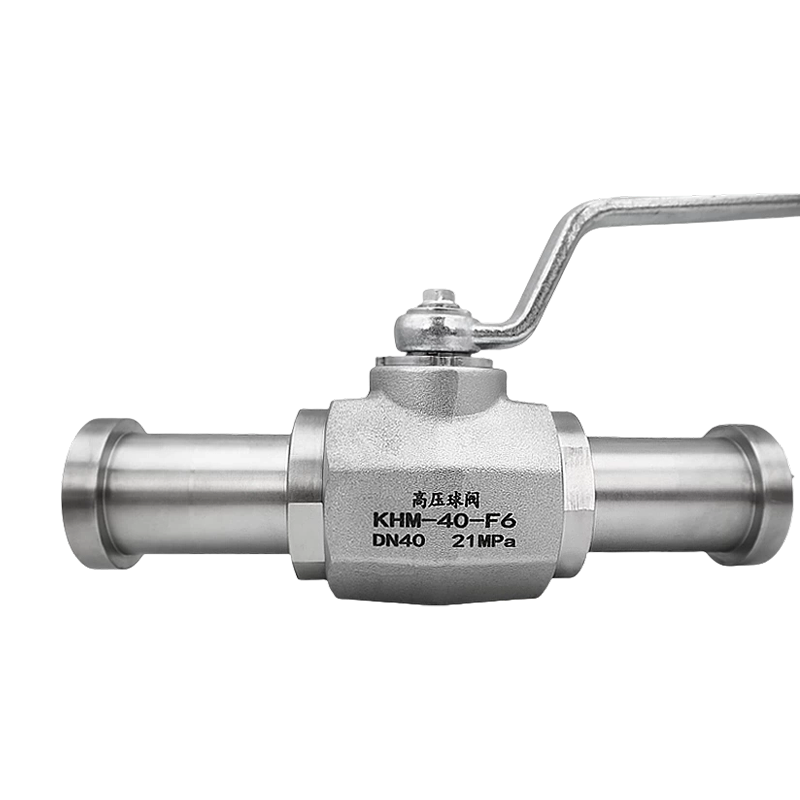

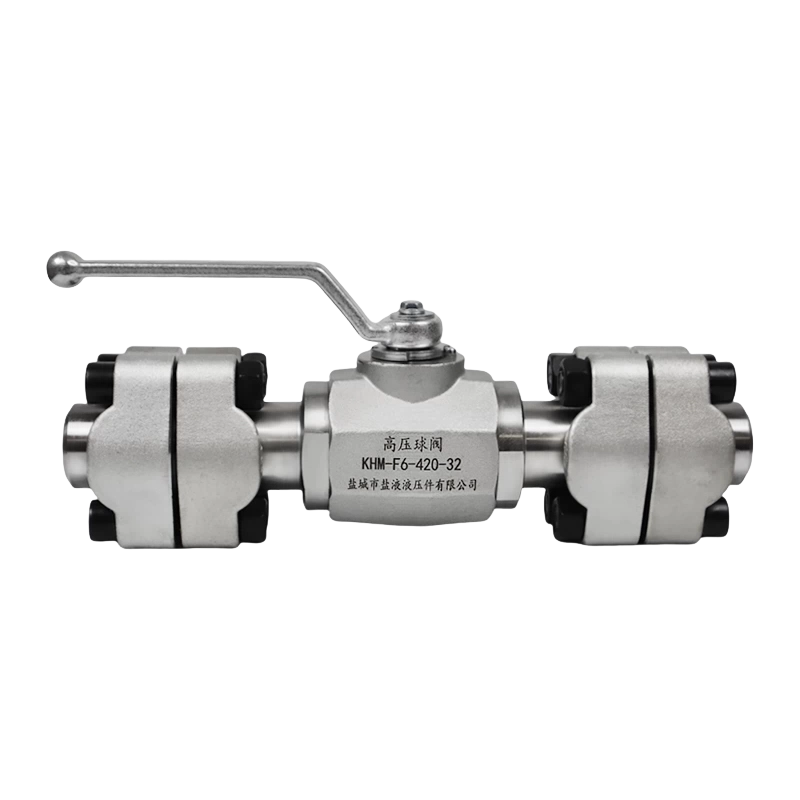

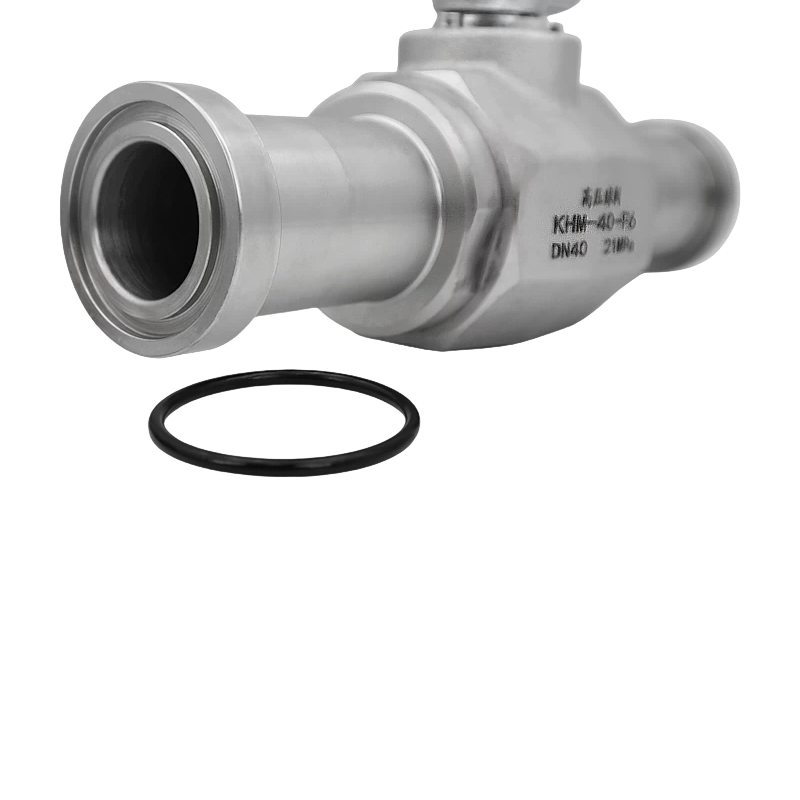

KHM Series High-Pressure Flange Ball Valve, Split Flange Type Ball Valve KHM-F3-F6-32
Split Flange Design · Convenient Installation · Stable and Reliable for High-Pressure Working Conditions
Core Product Highlights
- Split Flange Structure:
- 360° rotatable flange plate, easily adapting to pipeline alignment deviations;
- Greatly reduces installation difficulty, saving over 50% of installation time;
- Effectively eliminates pipeline stress and extends valve service life.
- High-Pressure and Durable Performance:
- Pressure rating: PN1.6-25.0MPa (Class150-1500);
- Valve body forged from high-quality carbon steel/stainless steel;
- Passes strict pressure testing to ensure safety and reliability.
- Comprehensive Specification Coverage:
- Full range from KHM-F3 (DN10) to KHM-F32 (DN32);
- Meets different flow and pressure requirements;
- Standard flange interface with strong interchangeability.
- Convenient Maintenance Features:
- Side-mounted design supporting online maintenance;
- Quick replacement of valve seat seal reduces downtime;
- Optional fire and static protection structure.
